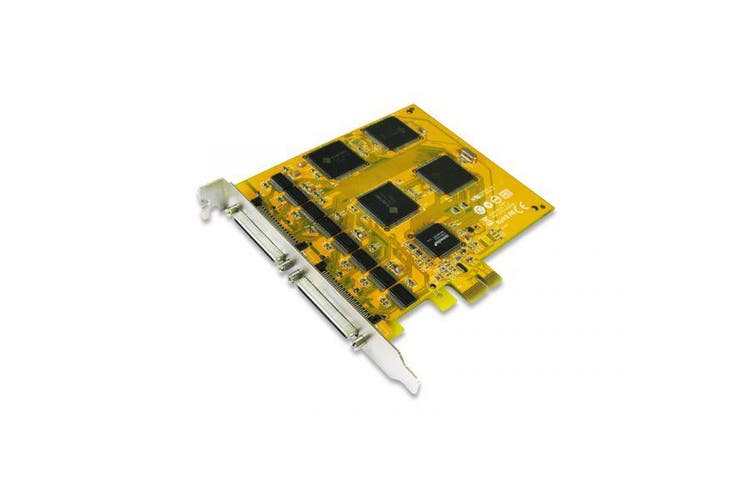

Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS SER5416H
Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS SER5416H
SKU:L-IDSUN-SER5416H
Regular price
$416.00
Regular price
Sale price
$416.00
Unit price
per
GST included.
Shipping calculated at checkout.
- 99% of orders are dispatched same or next business day
- Australian Stock and Warranty
- Perth pickup may be available (2-4 days)
Couldn't load pickup availability
Sunix 16-port RS-232 High Speed PCI Express Serial Board, 921.6Kbps, Support Microsoft Windows, Linux, and DOS
Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
High speed SUN1999 16C950 compatible UART controller on-board.
Designed to meet PCI Express Base Specification Revision 1.1.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
On-chip hardware auto flow control to guarantee no data loss.
Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.
Serial Communication
InterfaceRS-232SignalTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
ControllerSUNIX SUN1999
(16C950 UART Compatible)Baud rate50bps 921.6Kbps
BUSPCI Express one lane (x1)Stop bit1, 1.5, 2
No. of Port16-portParityeven, odd, none, mark, space
IRQ & IOAssigned by SystemFlow ControlNone, Xon/Xoff, RTS/CTS
FIFO128byte HardwarePCB ConnectorMini SCSI 68 Female
Protection15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge
Dimension
PCB Dimension120 x 110 mm
BracketStandard 121 mm
Bracket Space1
